DLS CCi500
1-kanals forstærker
610CCI500
SPAR 0%
DLS CCi500
1-kanals forstærker
- Prismatch på alle mærker
- Gratis fragt ved køb over 899,-
- 30 dages fuld returret og 2 års garanti
- Trustpilot-score: FREMRAGENDE
3199 DKK
3.199,-
PR. STK
inkl. moms
VAREN ER DESVÆRRE UDSOLGT
Kontakt Kundeservice her for evt. alternativ
- Prismatch på alle mærker
- Gratis fragt ved køb over 899,-
- 30 dages fuld returret og 2 års garanti
- Trustpilot-score: FREMRAGENDE
x
Nærmere beskrivelse på dansk følger snarest...
Designed and sound tuned by Gordon Taylor in cooperation with DLS Sweden, the CCi series amplifiers all share the unique intelligent cooling of the small footprint casing.

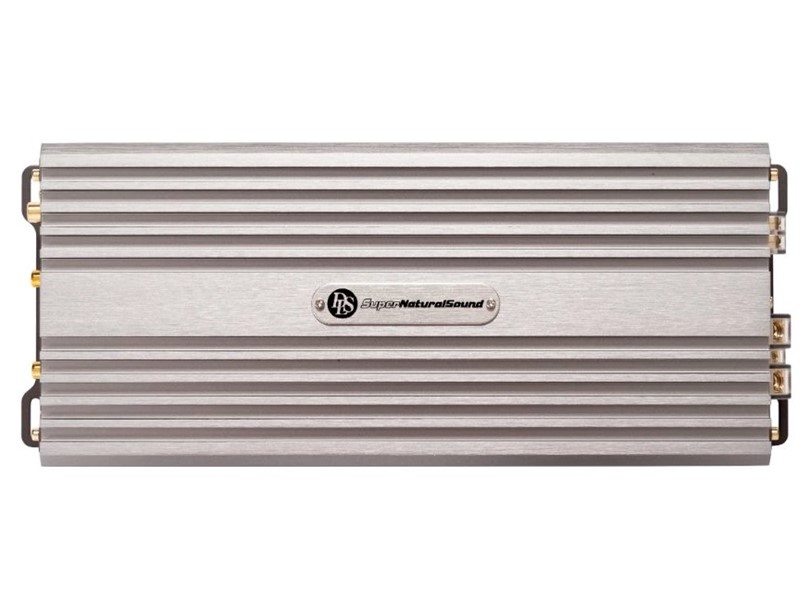

The clever tooling of the heatsink gives more heat dissipation fins on the outside and on the inside there is a vast area of small fins that collect the heat from the air venting through the PC board, releasing it through thin slots in the side panels.
The CCi series produce more power and less heat – you can hear it and you can feel it!
The advanced class D circuitry in CCi500 brings out massive, clean power to keep perfect control of the cone in any subwoofer. For perfect system integration the CCi series includes the proven DLS High level converter with Auto start for serious upgrading of OEM radios and wide range input level handling.
Number of channels – 1
Amplifier class – D
Output power in 1 ohm – 550 Watt
Output power in 2 ohm – 370 Watt
Output power in 4 ohm – 200 Watt
Damping factor >140
S/N ratio, A-weighted >92 dB
Frequency range 10 Hz – 2500 Hz

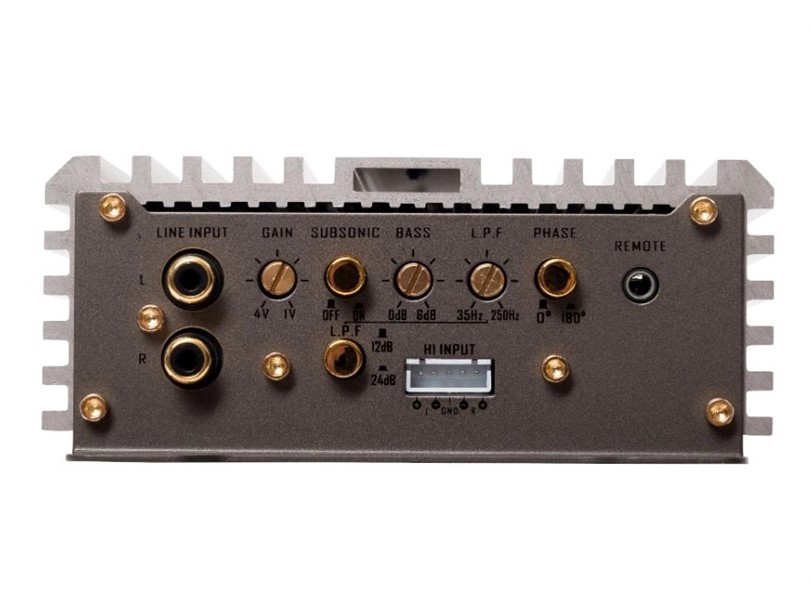

Input sensitivity 1 – 4 Volt
Input impedance 22 kohm
Input impedance, high level 45 ohm
Subsonic filter 30 Hz, ON/OFF
Filter low pass 35 – 250 Hz, 12 or 24 dB slope
Grand bass filter Bass boost 0- +6dB variable
Phase control for subwoofers 0 or 180 degrees switch
High level input with auto start Yes
Power consumption (idle) 0,8 A
Power consumption (max) 80 A
Dimension (W x D x H) 129 x 304 x 51 mm / 5,07 x 11,96 x 2″
Weight 2,4 kg
